Stingray Marine - Searaider Rib

Technical Specifications

The STINGRAY "SEARAIDER" is a semi-rigid mono hull inflatable craft, featuring a V mono hull construction with inflatable compartment. The 3.1, 3.4, 3.8m, 4.2m, 4.5m and 4.8m "SEARAIDER" have a progressive V hull with provision for underdeck cabling for the 4,5m and 4,8m. The 5.2m, 5.6m, 5.9m, 6.2m, 6.5m, 6.6m, 7.5m, 8.5m and 9.5m "SEARAIDER" have a deep V hull with provision for underdeck cabling and an underdeck hatch as standard fitment. Provision for the fitment of a 95 lit Polyethylene Fuel tank underdeck as an optional extra has been made on all model from the 5,2m to 6,6m. The 7.5m, 8.5m, and 9.5m can be fitted with a 95lit or 200lit Polyethylene Fuel tank.

An exceptionally versatile craft, the "SEARAIDER" can be used for every application from leisure water sports to sea rescue.

Each STINGRAY "SEARAIDER" conforms to CE Directive 2013/53EU and is built to pass STINGRAY's stringent quality control tests, using innovative materials and advanced construction technology.

materials

The STINGRAY "SEARAIDER" is available in a choice of two material:

PANATEX: An air-tight high grade fabric, specially developed for inflatable boats

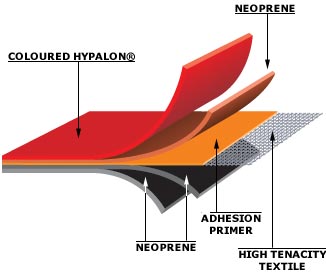

HYPALON: A synthetic rubber coated fabric to SOLAS standards(ORCA)
HULL AND DECKING: Hand laid up glass reinforced polyester with all gel coat finish

Air Compartments

The STINGRAY "SEARAIDER" 3,1m and 3.4m has a three compartment configuration, being one port, one bow and one starboard compartments. The 3.8m has a four compartment configuration, being two port and two starboard compartments. The 4.2m, 4.5m and 4.8m each have five compartments being one bow, two port and two starboard compartments. The 5.2m,5.6m, 5.9m, 6.2m, 6.5m and 6.6m each have a six compartment configuration being three port and three starboard compartments. The 7.5m and 8.5m have a ten compartment configuration being five port and five starboard compartments. The 9.5m has a twelve compartment configuration being bow, six port and six starboard compartments.

Transom

The STINGRAY "SEARAIDER" has a custom transom, constructed from glass reinforced polyester encased laminated ply.

Standard Features

5 Year warranty on pontoons ( * )
3 Year structural warranty ( * )
1 Year warranty on other items.
All-round life line
Tow-eye
Protective rubbing strake
Repair kit and pump
Wide range of optional extras

Specifications & Recommendations

Model Name	Length [mm]	Beam [mm]	Recommended Horse Power [HP]	# Passengers	Work/Pay Load [kg]	Mass [kg]
3.1 m SEARAIDER	3100	1450	8	3	400	90
3.4 m SEARAIDER	3400	1600	15	3	400	95
3.8 m SEARAIDER	3800	1820	25	3	500	155
4.2 m SEARAIDER	4200	1820	30	4	600	170
4.5 m SEARAIDER	4500	2080	2 X 30/ 1 X 70	5	800	190
4.8 m SEARAIDER	4800	2090	2 X 30/ 1 X 85	6	900	220
5.2 m SEARAIDER	5200	2300	2 X 50/ 1 X 100	8	990	320
5.6 m SEARAIDER	5600	2400	2 X 60/ 1 X 115	8	1000	366
5.9 m SEARAIDER	5900	2400	2 X 60/ 1 X 130	8	1000	390
6.2 m SEARAIDER	6200	2400	2 X 70/ 1 X 150	11	1070	488
6.2 m SEARAIDER (W)	6200	2670	2 X 70/ 1 X 150	11	1070	500
6.5 m SEARAIDER (W)	6500	2670	2 X 70/ 1 X 150	12	1120	550
6.6 m SEARAIDER	6600	2450	2 X 70/ 1 X 150	12	1200	520
7.5 m SEARAIDER	7500	2820	2 X 115	15	1350	850
8.5 m SEARAIDER	8500	2820	2 X 150	17	1600	920
9.5 m SEARAIDER	9500	2820	2 X 175	18	1800	1350
